Double Recessed LED Aluminum Floating Shelf
Need Custom Sizes:
External Transformer：
Need Sample:
Shipping Time:
Regular ETA 5-6 weeks to ship. Expedite ETA 1-2 weeks to ship for additional fees.
- Description
- Installation
- Specification
- Disclaimer
- Shipping info

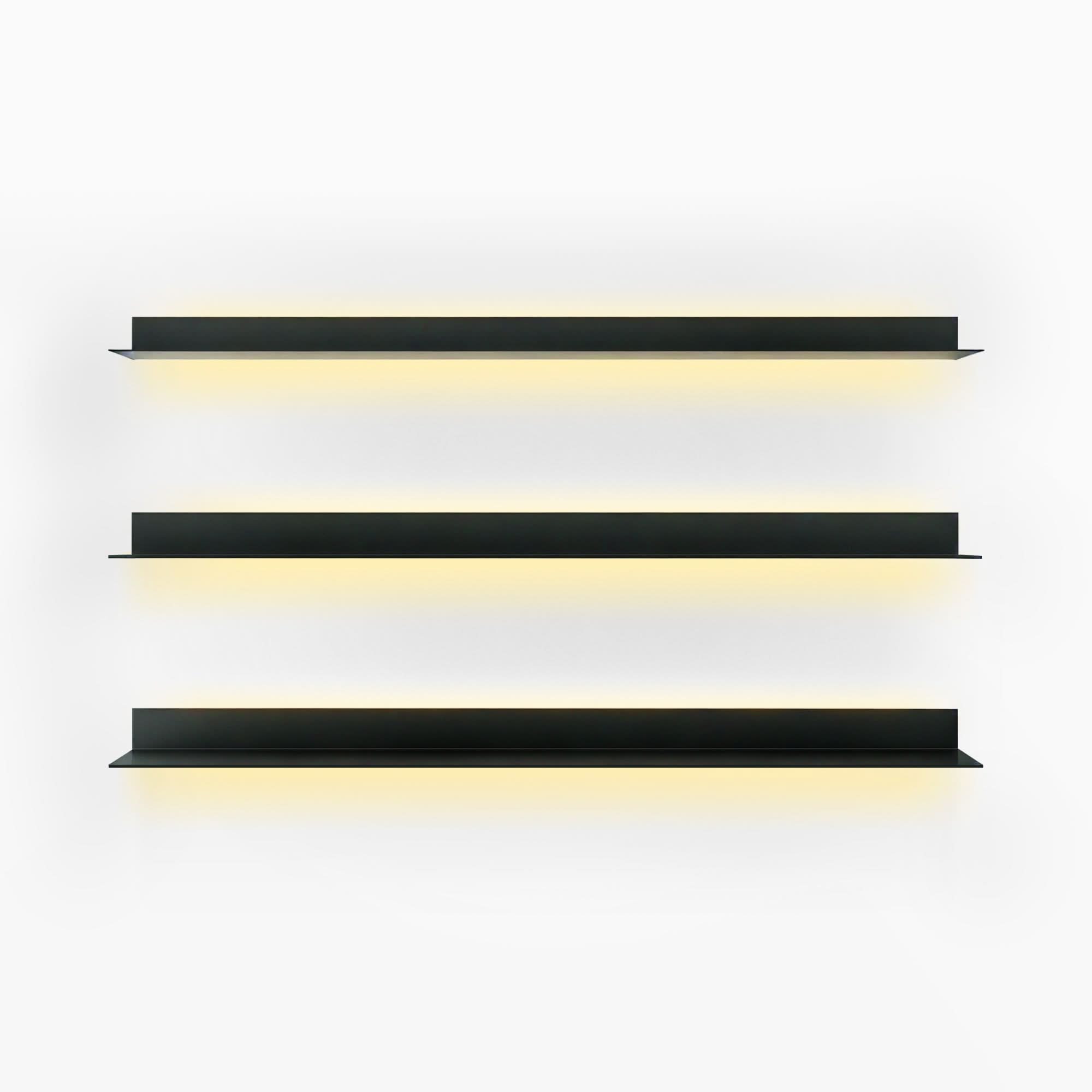

Modern Sleek Aluminum Double Sided Floating Shelves. Introducing the perfect blend of modern design and durability - Our Contemporary Design are made with top-quality materials, these shelves are a must-have for any space, adding both style and functionality.
Each QTY includes 1 shelf, LED Recessed Lighting, Lighting mounting bracket, Built in transformer. You will need 110V wire to be ready to connect. Weight Capacity - Each 12" can hold up to 20LB. 48" can hold up to 80 LB.
Double Sided Built In LED Lighting and Transformer Floating Shelves with different length and depth to choose from. Double Sided Built In LED Lighting and Transformer Floating Shelves with different length and depth to choose from:
Please make sure you select the correct depth you prefer. Custom length upon request.
Drilling installation required. Wire Type installation. This is not a battery type. Custom order in any size and length are welcome! We will not be able to custom the depth options. Depth options are fixed options listed above.
• Detailed Dimensions:
| Length | Depth |
| 23.62" | 600 mm 31.5" | 800 mm 35.43" | 900 mm 39.37" | 1000 mm 43.3" | 1100 mm 47.24" | 1200 mm 59.05" | 1500 mm 70.86" | 1800 mm 86.61" | 2200 mm | 7.87" | 200 mm 9.05" | 230 mm 10.62" | 270 mm 12.6" | 320 mm |
• Product Information:
| Item | Details |
| Shelf Thickness | 0.15" | 3.8 mm |
| Weight Capacity | Each 12" | 305 mm can hold up to 20 lb | 9 kg. 48" | 1219 mm can hold up to 80 lb | 36 kg. |
| Transformer / Driver Included | Yes |
| Lumens | ~150 lumens per foot |
| LED Color Options | 3000K (Warm white) , 4000K (Natural white) , 6000K (Cool white) |
| LED Strip CRI | 90+ |
| Dimmable | No. (Upgrade to dimmer transformer with 12V wire for additional $90.) |
| Input Voltage | 12V DC required |
| Power Consumption | 3 watts per linear foot (be sure to size transformer accordingly) |
| Power Supply | Required but not included — available on our website: https://store.pamperhaus.net/collections/shelf-accessories |
| Connection | Connect with 1m Dupont Cable. |
| Quantity | Each qty includes one shelf and one lighting mounting box. All shelving is sold as pairs with lighting box. |
| Total Depth | Including 26.6mm | 1.05" Lighting Mounting Bracket. |
• Calculating Transformer Size:
| Details | Example |
| LED shelves use 3 watts per linear foot of lighting. | a 36" shelf uses about 9 watts. |
| Always allow for a 40% safety factor. | Our transformer is 60 watts, therefore the total power consumption of the shelf must be ≤ 36 watts. |
• Shelf Type Comparison:
| Shelf Type | Operation | Advantages |
| Hardwire | Hardwire w/ switch | Battery w/ switch |
| Regular wall light switch | Touch switch on the shelf | Touch switch on the shelf |
| Built in transformer inside the lighting mounting box can be directly connected to 120-220V wire from the wall.. Shelf lighting controlled by regular wall light switch. Only option to upgrade to 12V wire + external dimmer transformer for additional $90. | Built in transformer inside the lighting mounting box without extra external wire connection. Shelf lighting controlled by built in touch dimmer lighting switch on the shelf. | No wiring required. Fully charge takes 6–8 hours with USB cable and USB-C port. The usage time is approximately 6–8 hours. |
Note: If shelves are separated (e.g., on both sides of a fireplace) and wires can' t be routed together, you’ll need separate transformers.
Custom orders are welcome! For customization beyond the website's preset options, feel free to send us a message.
Electroplating Color Matching Notice
This product undergoes an electroplating process, and exact color matching cannot be guaranteed.
The electroplating process chemically alters the material’s surface, involving the transfer of electrolytes between different metals. As a result, natural variations in tone, gloss, and appearance may occur, especially between different production batches.
To ensure the best possible color consistency, we recommend purchasing all required components at the same time. This helps ensure that the products come from the same production batch, minimizing color differences.
Please note: Due to the nature of the electroplating process, color consistency across different production batches cannot be guaranteed. Therefore, return requests due to color differences (especially for separately purchased items) will not be accepted, and the buyer assumes responsibility.
If you have any questions, please contact us at info@pamperhaus.net or 415-754-0166.
Regular ETA 5-6 weeks to ship. Expedite ETA 1-2 weeks to ship for additional fees.
